A leather wrapped handle protrudes from the ash framed door.
Dovetails are cut 1/32nd of an inch proud for detail and texture
The reorganizable shelf rests on four brass pins, which fit into bronze bushings.
This ash shelf presents a place to display your vinyl of choice.
Split top design
Sliding hydraulic pivots actuate the opening and closing of the top
A challenging piece. This cabinet was in the works for several months, including back and fourths on the design and the build itself. The main hurdle was in the tambour. The weight of the door wants to slide down the track and there are a series of magnets on the interior, which allow the door to open to specific heights.
tambour door stops at the bottom of the top shelf
Solid walnut body construction with ash accents to frame doors and support the underside of the cabinet.
Custom brass nameplate, nailed into the back of the cabinet.
The shelf pins: two intended for a record player, two intended for a speaker.
The back of the cabinet has a slot for potential maintenance of the tambour door.
Sketches of the piece as well as iterations

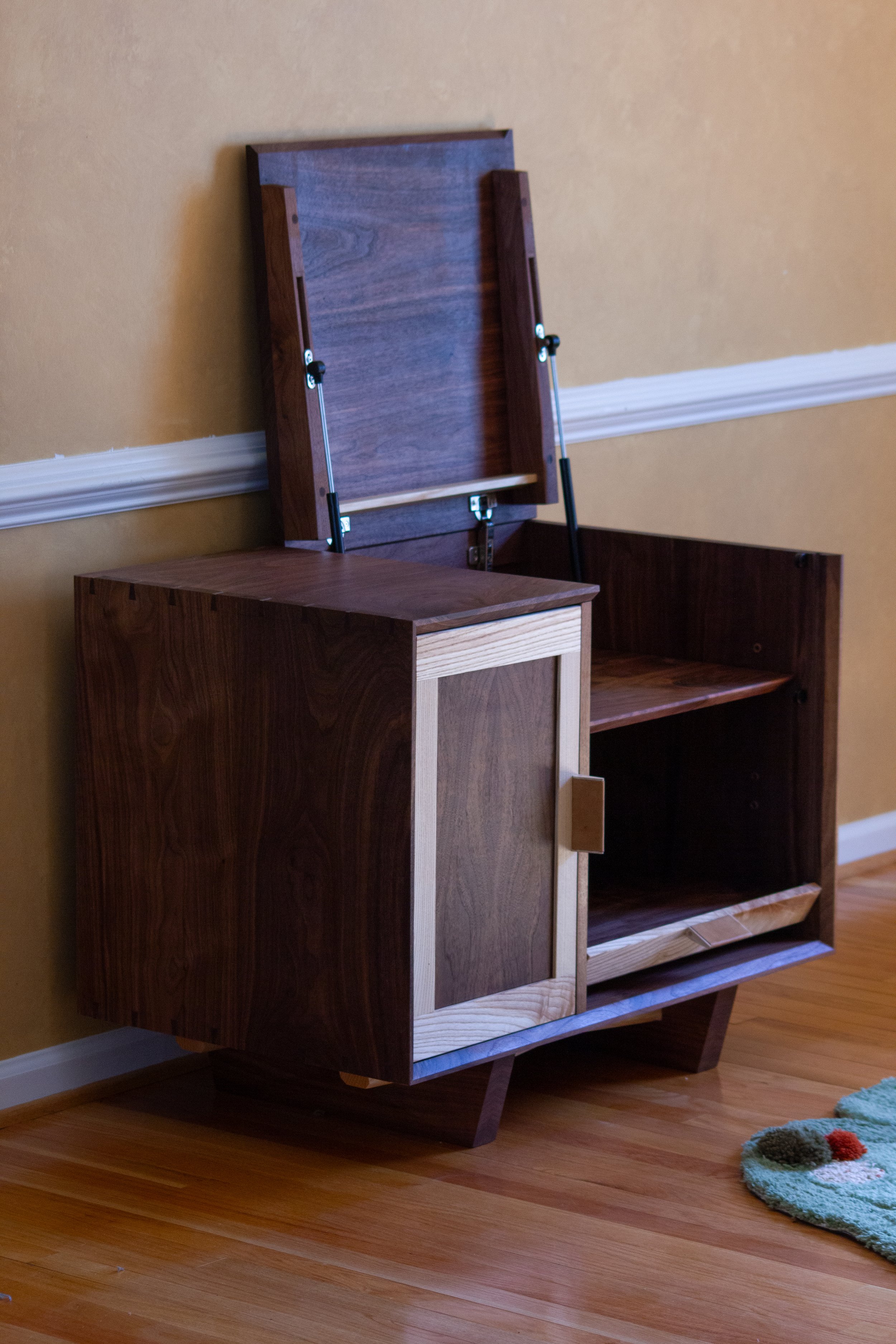

Cabinet opened up

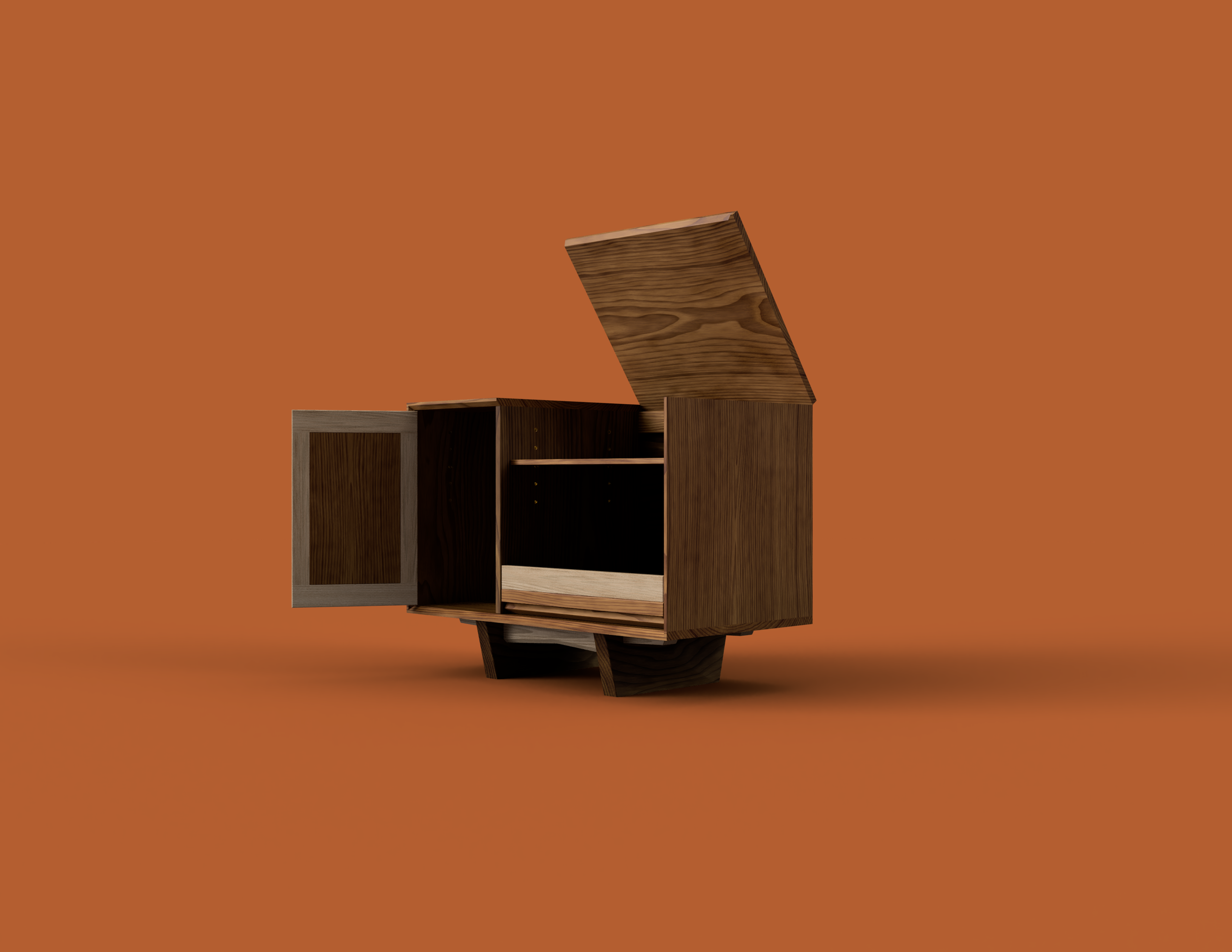

The final 3d model for the cabinet
Final sketch of the record cabinet
